Optics and Fibre · QSFP-CT-1829400-MM

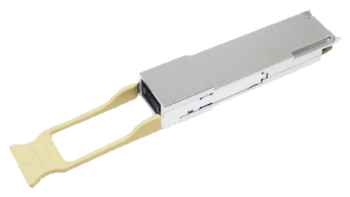

Aerless QSFP+ 40G SR4 Multimode, Commercial
Commercial temperature 40G QSFP+ SR4 module, four channels up to 11.32Gbps over MPO-12.
Overview
A four channel parallel fibre QSFP+ transceiver for 40GbE and InfiniBand DDR, QDR and FDR-10, particularly in data centre and storage networks. Four independent channels, each capable of 11.3Gbps, give an aggregate 45.2Gbps up to 100m on OM3.
Applications
- 40Gb Ethernet
- OTN OTU3 at 43.01G and OTU3e2 at 44.58G
- Breakout to 4 x 10GBASE-SR Ethernet
- InfiniBand DDR, QDR and FDR-10 interconnects
Key features
- Four independent full duplex channels
- Up to 11.32Gbps per channel
- 850nm VCSEL array transmitter
- MPO-12 receptacle
- Hot pluggable
Compatibility and support
Coded for your platform,
proven in your network.
Every Aerless module is programmed to present the vendor code your switch expects, so it comes up as a supported optic rather than an unrecognised one. The common platforms are held pre coded and ship from stock. Anything else is programmed against your order.
And we stay with it through qualification. If a module has to be proven in your environment before you commit to a rollout, we support you through testing and qualification rather than handing over a part number and leaving you to it.
Tell us the switch when you send your list and we will code them before they ship.
- Cisco
- Juniper
- Arista
- HPE
- Aruba
- Dell
- Extreme Networks
- Netgear
- Ciena
- Huawei
- ZTE
- ADVA
- Samsung
Platform names are the trademarks of their respective owners and appear here only to describe compatibility. Aerless modules are not manufactured, sold or endorsed by these vendors.
Standards and compliance
- IEEE 802.3ba 40GBASE-SR4
- SFF-8436 QSFP+ MSA
