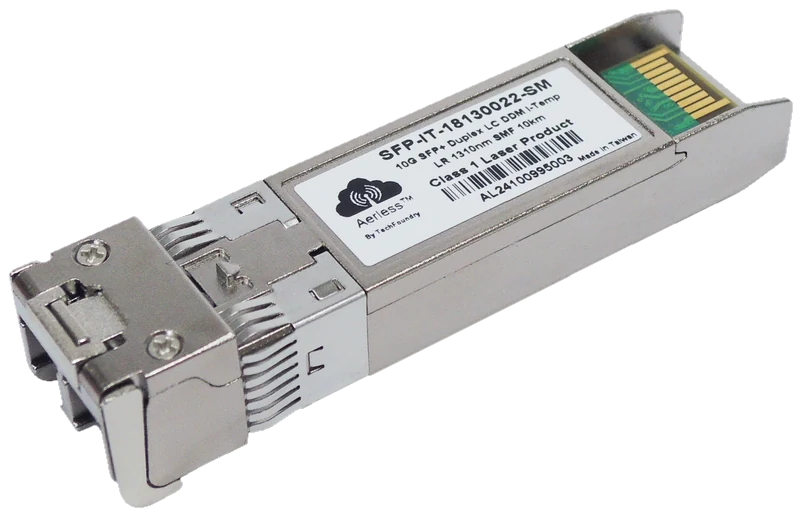

Optics and Fibre · SFP-IT-18130022-SM
Aerless SFP+ 10G LR Singlemode, Industrial
10G SFP+ transceiver with a 1310nm DFB transmitter for 10GBASE-LR links up to 10km on singlemode fibre.
Overview
A small form factor pluggable SFP+ transceiver compliant with the current SFP+ MSA. An uncooled 1310nm DFB transmitter and a high sensitivity PIN receiver give it the performance needed for 10GBASE-LR and LW applications over singlemode fibre up to 10km.
Applications
- 10GBASE-LR and LW Ethernet at 10.3125G
- Fibre Channel 8GFC and 10GFC
- SONET OC-192 and SDH STM-64 at 9.953G
- CPRI options 7 and 8
Key features
- Multi rate support from 8.5Gbps to 11.32Gbps
- 1310nm DFB laser transmitter
- Hot pluggable
- Duplex LC connector
- Two wire interface for management and diagnostics
Compatibility and support
Coded for your platform,
proven in your network.
Every Aerless module is programmed to present the vendor code your switch expects, so it comes up as a supported optic rather than an unrecognised one. The common platforms are held pre coded and ship from stock. Anything else is programmed against your order.
And we stay with it through qualification. If a module has to be proven in your environment before you commit to a rollout, we support you through testing and qualification rather than handing over a part number and leaving you to it.
Tell us the switch when you send your list and we will code them before they ship.
- Cisco
- Juniper
- Arista
- HPE
- Aruba
- Dell
- Extreme Networks
- Netgear
- Ciena
- Huawei
- ZTE
- ADVA
- Samsung
Platform names are the trademarks of their respective owners and appear here only to describe compatibility. Aerless modules are not manufactured, sold or endorsed by these vendors.
Standards and compliance
- IEEE 802.3ae 10GBASE-LR and LW
- CPRI options 7 and 8
- SFF-8431 and SFF-8432 SFP+ MSA
