Optics and Fibre · SFP-IT-18180011-MM

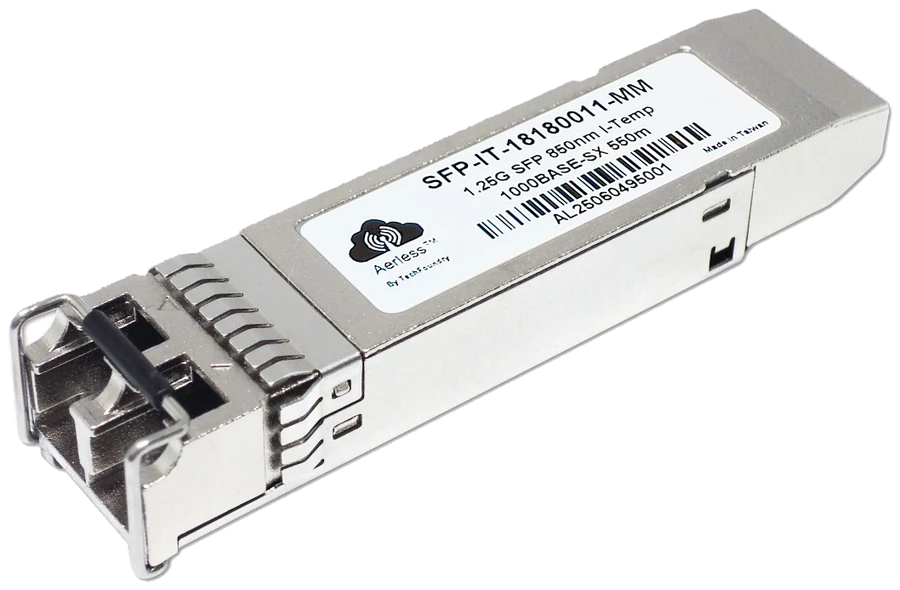

Aerless SFP 1.25G 1000SX Multimode, Industrial
Gigabit SFP transceiver with an 850nm VCSEL transmitter for 1000BASE-SX links up to 550m on OM2.
Overview
A small form factor pluggable SFP transceiver compliant with the current SFP MSA. An 850nm VCSEL transmitter and a high sensitivity PIN receiver support Gigabit Ethernet 1000BASE-SX and 1GFC Fibre Channel over multimode fibre up to 550m on OM2.
Applications
- Gigabit Ethernet 1000BASE-SX at 1.25G
- Fibre Channel 1GFC at 1.0625G
Key features
- 850nm VCSEL laser transmitter
- Hot pluggable
- Duplex LC connector
- Digital diagnostic monitoring
Compatibility and support
Coded for your platform,
proven in your network.
Every Aerless module is programmed to present the vendor code your switch expects, so it comes up as a supported optic rather than an unrecognised one. The common platforms are held pre coded and ship from stock. Anything else is programmed against your order.
And we stay with it through qualification. If a module has to be proven in your environment before you commit to a rollout, we support you through testing and qualification rather than handing over a part number and leaving you to it.
Tell us the switch when you send your list and we will code them before they ship.
- Cisco
- Juniper
- Arista
- HPE
- Aruba
- Dell
- Extreme Networks
- Netgear
- Ciena
- Huawei
- ZTE
- ADVA
- Samsung
Platform names are the trademarks of their respective owners and appear here only to describe compatibility. Aerless modules are not manufactured, sold or endorsed by these vendors.
Standards and compliance
- IEEE 802.3z Gigabit Ethernet
- Fibre Channel 100-M5-SN-I
- INF-8074i SFP MSA
- SFF-8472 diagnostics
