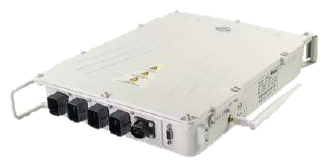

Shoto 3kW Integrated 5G Power System

Overview

A complete site power system rather than a shelf of parts: rectifier, monitoring, power distribution, a wireless communication unit and the lithium battery module in one enclosure. It arrives configured, needs no setting up, is maintenance free and takes expansion later.

The casing is aluminium and dissipates heat well, which is what lets it sit outdoors through high and low temperature, dust and humidity. It mounts on a wall or a pole, indoors or out.

Applications

• Distributed 5G micro base stations
• Distributed small capacity terminal sites
• Transmission sites
• Small cells
• Other low power sites

Key features

• Rectifier, monitoring, distribution and battery in one enclosure
• Power efficiency up to 97%, charge efficiency 97% or better
• Lightning protection on input, output and communication interfaces
• RS485, CAN and wireless communication
• Aluminium casing, high heat dissipation
• Wall and pole mounting, indoor or outdoor
• No commissioning settings required, maintenance free
• Supports capacity expansion

Compatibility and selection

Confirm the required voltage, capacity or output rating, system interface and installation environment. Mechanical fit alone does not establish electrical compatibility.

Include AC supply, DC load, rectifier configuration, battery requirements and any redundancy or monitoring requirements.

What to include in your enquiry

• Part number, quantity and required delivery date.
• Delivery location and any qualification or test report requirements.
• System voltage, load, required capacity or rating and connected equipment.
• Cabinet dimensions, interfaces, operating environment and installation requirements.

We confirm the selected configuration, volume pricing and delivery in the quotation. Ask us to confirm the lead time for your quantity and destination.

Warranty and returns

Ask us to confirm the Shoto warranty duration, coverage and return conditions for this product in your quotation.

Standards and compliance

• ISO 9001
• ISO 14001
• UN38.3
