Shoto DP60 Data Centre Lithium Battery

Overview

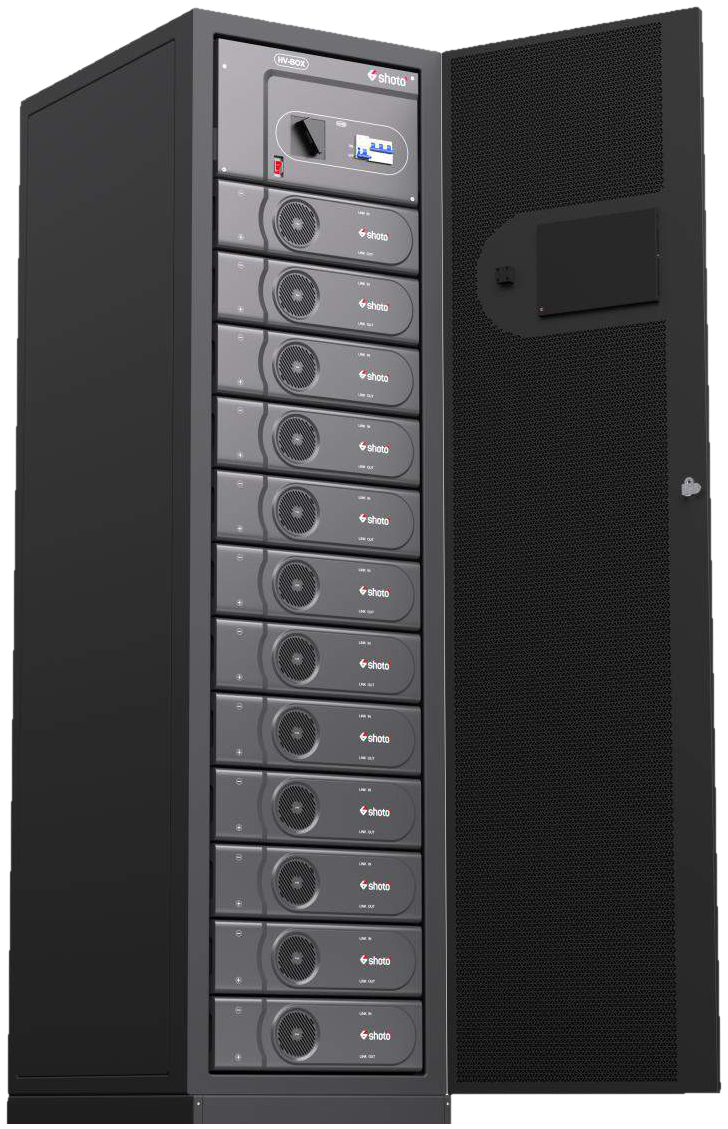

The high power member of the data centre family, in the same 600 by 800 by 2000mm cabinet as the DP30 but rated to 630kW maximum discharge for plant that has to hold a heavy load through a transfer.

Calendar life is designed at ten years at 25C plus or minus 5C, which is what brings the total cost of ownership below a lead acid string that has to be replaced more often.

Applications

• Data centre UPS plant
• HVDC plant
• High load transfer duty
• Standardised cabinet installation

Key features

• Lithium iron phosphate cells, twelve modules and one high voltage box
• Maximum discharge power 630kW
• Calendar life ten years at 25C plus or minus 5C
• Three level BMS architecture
• Up to 16 cabinets in parallel
• Air cooled, IP20
• RS485, CAN, dry contact and Ethernet, Modbus TCP and RTU, CAN2.0B

Compatibility and selection

Confirm the required voltage, capacity or output rating, system interface and installation environment. Mechanical fit alone does not establish electrical compatibility.

Include the charger or UPS model, battery management and communications requirements, target backup duration and available cabinet space. Confirm the complete system configuration and applicable installation requirements before ordering.

What to include in your enquiry

• Part number, quantity and required delivery date.
• Delivery location and any qualification or test report requirements.
• System voltage, load, required capacity or rating and connected equipment.
• Cabinet dimensions, interfaces, operating environment and installation requirements.

We confirm the selected configuration, volume pricing and delivery in the quotation. Ask us to confirm the lead time for your quantity and destination.

Warranty and returns

Ask us to confirm the Shoto warranty duration, coverage and return conditions for this product in your quotation.

Standards and compliance

• UL1973 on the cell
• UL9540A tested, formal report and letter of attestation available
• ISO 9001
• ISO 14001
