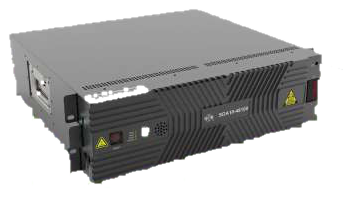

Shoto Smart-Li 48V 100Ah Telecom Battery

Overview

A lithium iron phosphate battery system built for telecom backup rather than adapted to it. The BMS holds constant current, constant voltage and constant power output, reports state of charge and state of health, and works alongside existing lead acid strings where a site is being converted a cabinet at a time.

The panel is die cast aluminium and cools itself, so there is no fan to fail and nothing to hear on a site with people nearby.

Applications

• Backup power for FTTB, FTTH, ONU and EPON
• Stable grid sites
• Half grid and unreliable grid sites

Key features

• Continuous 1C discharge, 100A maximum
• Charge current limited at 10A, adjustable, 100A maximum
• Boost and float charge at 56.4V and 54V, 57V boost supported
• BMS reports state of charge and state of health
• Up to 32 systems in parallel
• RS485 x2 and dry contact x2, ALM, RUN and SOC indicators
• Rack or wall mounted, M6 terminal studs
• Die cast aluminium panel, self cooling, no fan and no noise
• Compatible with existing lithium and lead acid backup strings
• Optional anti theft by software, gyroscope or material

Compatibility and selection

Confirm the required voltage, capacity or output rating, system interface and installation environment. Mechanical fit alone does not establish electrical compatibility.

Include the charger or UPS model, battery management and communications requirements, target backup duration and available cabinet space. Confirm the complete system configuration and applicable installation requirements before ordering.

What to include in your enquiry

• Part number, quantity and required delivery date.
• Delivery location and any qualification or test report requirements.
• System voltage, load, required capacity or rating and connected equipment.
• Cabinet dimensions, interfaces, operating environment and installation requirements.

We confirm the selected configuration, volume pricing and delivery in the quotation. Ask us to confirm the lead time for your quantity and destination.

Warranty and returns

Ask us to confirm the Shoto warranty duration, coverage and return conditions for this product in your quotation.

Standards and compliance

• ISO 9001
• ISO 14001
• UN38.3
