Power · SDA10-48150

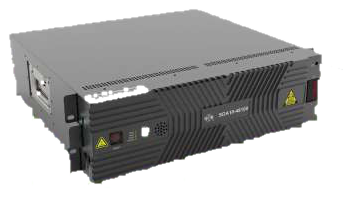

Shoto Smart-Li 48V 150Ah Telecom Battery
The 7.2kWh step in the 48V rack range, rated 4.8kW, for sites that need more autonomy than a 100Ah shelf provides.
Overview
The same rack mounted 48V platform as the 100Ah system with half again the energy, rated at 7.2kWh and 4.8kW. The BMS uses bidirectional DC conversion, so it runs on an existing telecom DC switching power supply without changing the charge and discharge regime already set on site.
A Bluetooth module is available on a reserved interface if you want battery status on a phone during a site visit.
Applications
- Backup power for FTTB, FTTH, ONU and EPON
- Stable grid sites
- Half grid and unreliable grid sites
Key features
- 7.2kWh rated energy, 4.8kW rated power
- Runs on an existing telecom DC switching power supply unchanged
- Bidirectional DC conversion in the BMS
- Up to 32 systems in parallel
- RS485 x2 and dry contact x2
- Rack or wall mounted, M6 terminal studs
- Self cooling, no fan
- Optional Bluetooth module for status on a phone
Standards and compliance
- ISO 9001
- ISO 14001
- UN38.3
