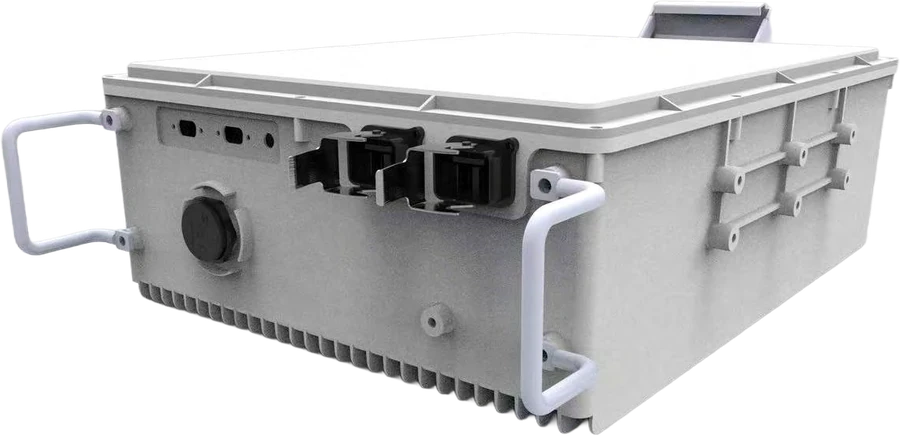

Shoto SDA10-4850 Outdoor Lithium Battery

Overview

An unattended backup battery for sites with no cabinet and no shelter. It is sealed to IP65, rated from -40C to +55C, and cools naturally with no fan, which is what makes it maintenance free on a pole or a tower leg. Terminals are waterproof and protected against reverse connection, and the unit supports hot swapping so a replacement does not drop the site.

This is also the battery module used in the 3kW and 6kW integrated 5G power systems.

Applications

• Outdoor distributed base stations
• Small capacity distributed subnet sites
• Transmission sites
• Other low power sites
• Pole, tower leg and angle steel tower mounting

Key features

• IP65 rated for outdoor mounting
• Rated from -40C to +55C
• Charge efficiency 97% or better
• Cycle life six times a conventional battery
• Natural heat dissipation, no fan, no noise, maintenance free
• Waterproof and reverse terminal protection
• Hot swappable, quick installation
• Excellent constant power discharge
• Optional anti theft and dry contact

Compatibility and selection

Confirm the required voltage, capacity or output rating, system interface and installation environment. Mechanical fit alone does not establish electrical compatibility.

Include the charger or UPS model, battery management and communications requirements, target backup duration and available cabinet space. Confirm the complete system configuration and applicable installation requirements before ordering.

What to include in your enquiry

• Part number, quantity and required delivery date.
• Delivery location and any qualification or test report requirements.
• System voltage, load, required capacity or rating and connected equipment.
• Cabinet dimensions, interfaces, operating environment and installation requirements.

We confirm the selected configuration, volume pricing and delivery in the quotation. Ask us to confirm the lead time for your quantity and destination.

Warranty and returns

Ask us to confirm the Shoto warranty duration, coverage and return conditions for this product in your quotation.

Standards and compliance

• ISO 9001
• ISO 14001
• UN38.3
